5 years warranty 50w 80w 100w 150w 240w led street light, IP66 waterproof 3000k 6000k city led road lighting
Model Number : EK-LD2301
Názov produktu: Telo Street Light
Recommend the Watts: : 20w 60w 80w 100w 150w 200w 240w
Vodotesný index: IP66 IP67
Index odolnosti voči zemetraseniu: IK08 IK09
Pracovná teplota (℃): -20-60
Farba povrchu: tmavošedá, svetlošedá, čierna, prispôsobená atď
Contain Accessories : Complete finished street lights
Vlastnosti produktu
- Hliníkové telo je vyrobené z tlakového odliatku hliníka ADC12, povrch je upravený striekaním, aby sa zabránilo korózii a stálosti farieb.
- Veľkoplošný dizajn rebrového chladiča pre rýchlu teóriu v prospech konvekcie medzi studeným a horúcim vzduchom, aby sa zachoval dobrý odvod tepla lámp a predĺžila sa životnosť svetla.
- Box dodávateľa napájania, aby bola lampa kompletná a jednotná.
- Dizajn vetrania zabraňujúci prachu a stagnácii vody, aby sa dosiahla dlhá životnosť svetla.

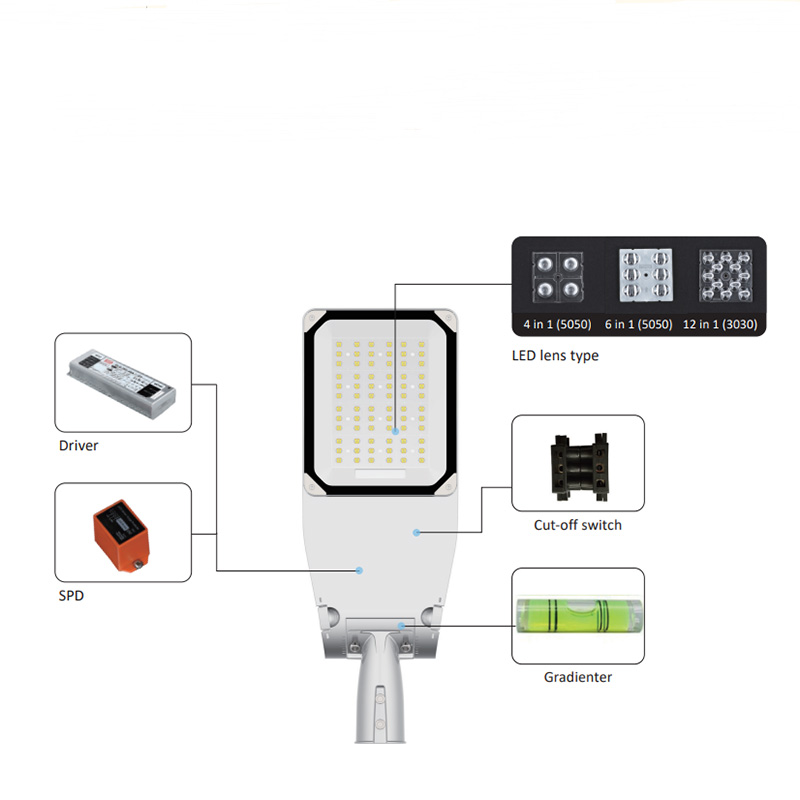

Product Details

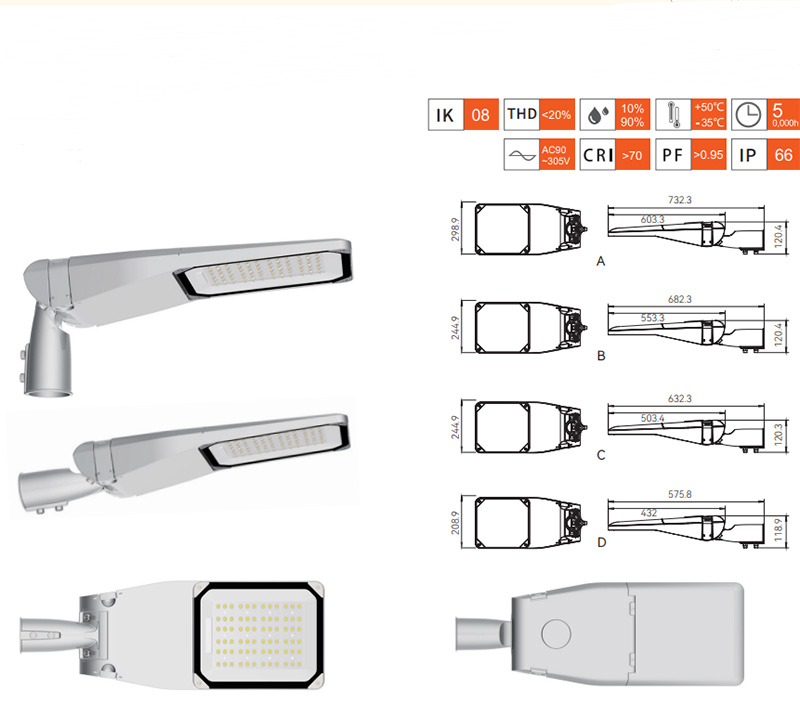

Product Size Chart
Špecifikácia a rozmer
| Model | EK-LD2301A | EK-LD2301B | EK-LD2301C | EK-LD2301D |
| Wattage | 150-240W | 100W-150W | 60W-100W | 20W-60W |
| Average Lumen | around 120 LM/W | around 120 LM/W | around 120 LM/W | around 120 LM/W |
| Chip Brand | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN |
| Driver Brand | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 |
| Voltage Range | 90V-305V | 90V-305V | 90V-305V | 90V-305V |
| Surge Protection(SPD) | 10KV/20KV | 10KV/20KV | 10KV/20KV | 10KV/20KV |
| Insulation Class | Class I / II | Class I / II | Class I / II | Class I / II |
| CCT. | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
| CRI. | >70 | >70 | >70 | >70 |
| Working Temperature | (-35℃ to 50℃) | (-35℃ to 50℃) | (-35℃ to 50℃) | (-35℃ to 50℃) |
| Trieda IP | IP66 | IP66 | IP66 | IP66 |
| IK Class | ≥IK08 | ≥IK08 | ≥IK08 | ≥IK08 |
| Lifetime (Hours) | >50000 hours | >50000 hours | >50000 hours | >50000 hours |
| Materiál | Diecasting aluminium | Diecasting aluminium | Diecasting aluminium | Diecasting aluminium |
| Photocell base | With | With | With | With |
| Installation Spigot | 60/50mm | 60/50mm | 60/50mm | 60/50mm |
New Arrival 180W Street Led Manufacturer Outdoor Lighting Waterproof Aluminum LED Street Light
Shenzhen EKI Lighting Industrial Co., Ltd. je výrobcom LED svietidla z hliníkového tlakového odlievania s rôznymi nami vyvinutými dizajnmi a technológiami.
With Our High-Technology Machine such as, 250T 800T 1000T 1250T Die Casting Machine, CNC Machine, Well Managed production line and surface treatment facility. We becoming specialized in LED Streetlight Housing, LED Floodlight Housing, LED Highbay Heatsink, LED Empty Casting aluminum light housing.
