Die casting Aluminum Material Integrated LED Lighting ,high lumen brightness led light parts with PCB, Lens choose

Model No: EK-LD03
Match Power: 60W/180W
Contain Accessories: Aluminum Housing,Toughened Glass, Assembly Screws,Lamp Post pole,
Item         :  IP65 LED Street Lighting Housing
Power      :   60W / 180W
Input Voltage   :   AC220 - 240V, 50/60 HZ
Výber farby: tmavošedá, svetlošedá, čierna, prispôsobené atď
Lifespan  :  ≥50000 Hours

Vlastnosti produktu

  • Die casting Aluminum material body with high quality surface treatment powder painting black color ,gray color or customized as clients Requirements
  • COB Design with different power from 40w--140w , high performance on Lighting efficiency, Match your project Main Road and small city street side,
  • High waterproof protect IP65 IP66, suit to projects and install near sea city or road lighting, IK08/IK09 shock proof grade ,great quality surface powder dusting to guarantee long lifetime of the lighting use,
  • Good dissipation line design to help the working lighting Efficient heat dissipation Cooling, During the same size empty housing do bigger power lighting to Saving your cost and Maintenance fee.

Celá séria a špecifikácia

Kód modeluVeľkosť krytu (Mm)Match PowerStĺpik lampy (Mm)  Hmotnosť (kg)Príslušenstvo


EK-GLH02Typ A

Φ460*45350W-80W 765.7Heatsink body,armoured glass, Waterproof Rubber Ring,304 s/s screws,
EK-GLH02Typ BΦ460*51550W-80W 765.4
EK-GLH02Typ BΦ460*19450W-80W604.8
Legend: Std = IP65 IK08 Testing certificates
Materiál puzdra: Tlakovo liaty hliník + pancierové sklo
Pracovná teplota -35℃~50℃ 20%~90% HR

LED záhradné svietidlá vonkajšie 60w 80w

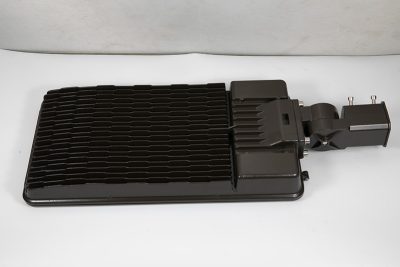

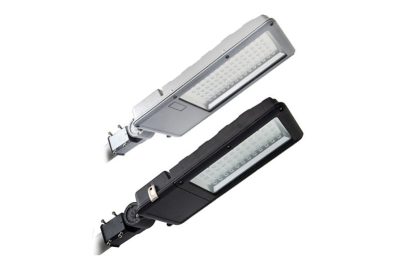

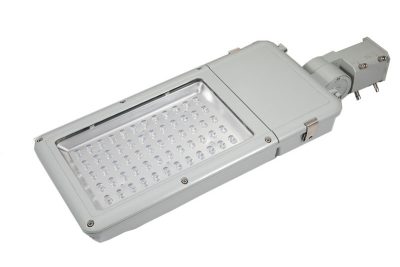

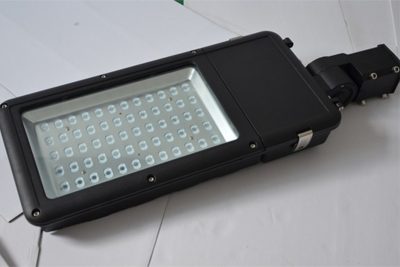

EK-LD03
IP65/IP66 , IK09/IK10,
Materiál: ADC12 hliník
Farba krytu: šedá, čierna,
