Horizontal and Vertical available adjustable angle-15°to+15° led street lighting.
The LED Street light housing manufacture from high pressure die-casting aluminum casing
| Kód modelu | Housing Size mm | Match Power | Lamp Post （mm) | Hmotnosť (kg) | Príslušenstvo |
| EK-LD13A | 492*183*97 | 30-50W | 60 | 2.4kg | Aluminum body tempered glass, Waterproof Rubber Ring，304 s/s screws, |
| EK-LD13B | 541*200*113 | 60-80W | 60 | 2.8kg | |
| EK-LD13C | 602*243*121 | 90-120W | 60 | 3.5kg | |
| EK-LD13D | 652*263*121 | 120-150W | 60 | 4.0kg | |
| EK-LD13E | 722*314*121 | 150-200W | 60 | 5.5kg | |
| EK-LD13F | 823*314*121 | 240-300W | 60 | 6.1kg | |
| Legend: Std = IP66 IK08 | |||||
| Housing Material ：Die-cast Aluminum + Armored Glass | |||||
| Pracovná teplota -35℃~50℃ 20%~90% HR | |||||
Vlastnosti produktu
- Hliníkové telo je vyrobené z tlakového odliatku hliníka ADC12, povrch je upravený striekaním, aby sa zabránilo korózii a stálosti farieb.
- Large area heatsinks fin design for fast theory in favor of the connection between cold and hot air, to keeping the good heat dissipation of lamps and increase the light whole life-time.
- Box dodávateľa napájania, aby bola lampa kompletná a jednotná.
- Dizajn vetrania zabraňujúci prachu a stagnácii vody, aby sa dosiahla dlhá životnosť svetla.
high-performance street lighting available in three sizes.
The LED Street lighting is manufactured from high pressure die-casting aluminum.

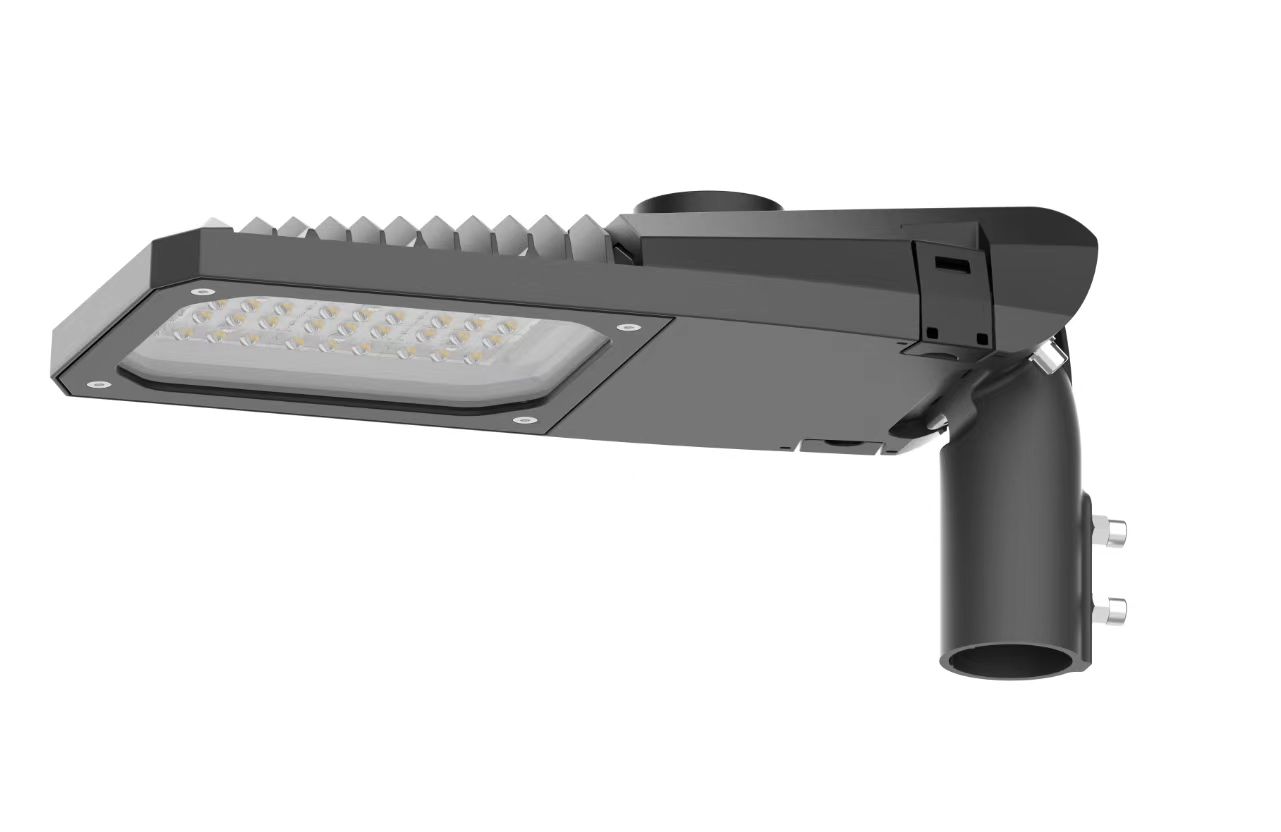

Led street light housing, Aluminum body street light
Shenzhen EKI Lighting Industrial Co., Ltd. je výrobcom LED svietidla z hliníkového tlakového odlievania s rôznymi nami vyvinutými dizajnmi a technológiami.
With Our High-Technology Machine such as, 250T 800T 1000T 1250T Die Casting Machine, CNC Machine, Well Managed production line and surface treatment facility. We becoming specialized in LED Streetlight Housing, LED Floodlight Housing, LED High bay Heatsink, LED Downlight Empty Casting and so on.
Vlastnosti krytu LED pouličného osvetlenia:
- Vysoká odolnosť
- Vysoká pevnosť
- Najnovšie dostupné návrhy
